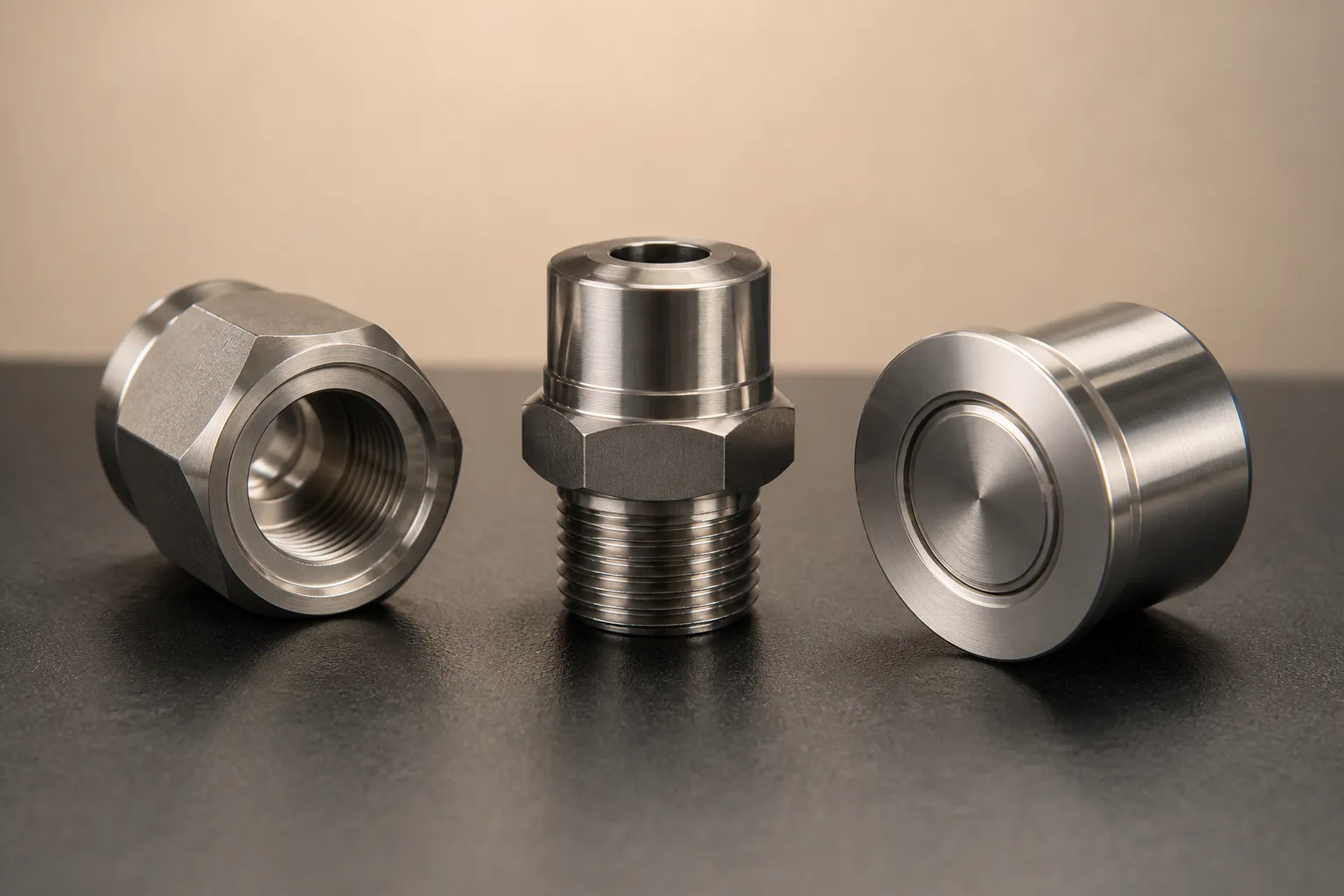

01Inline pressure bodies
Turned bodies with a controlled pressure port, wrench flats, sensor cavity and sealing shoulder.
- Pressure port
- Concentric bore
- Hex interface
Drawing-defined pressure hardware · Factory-direct global support
PRESSURE & SENSOR HARDWARE / 02

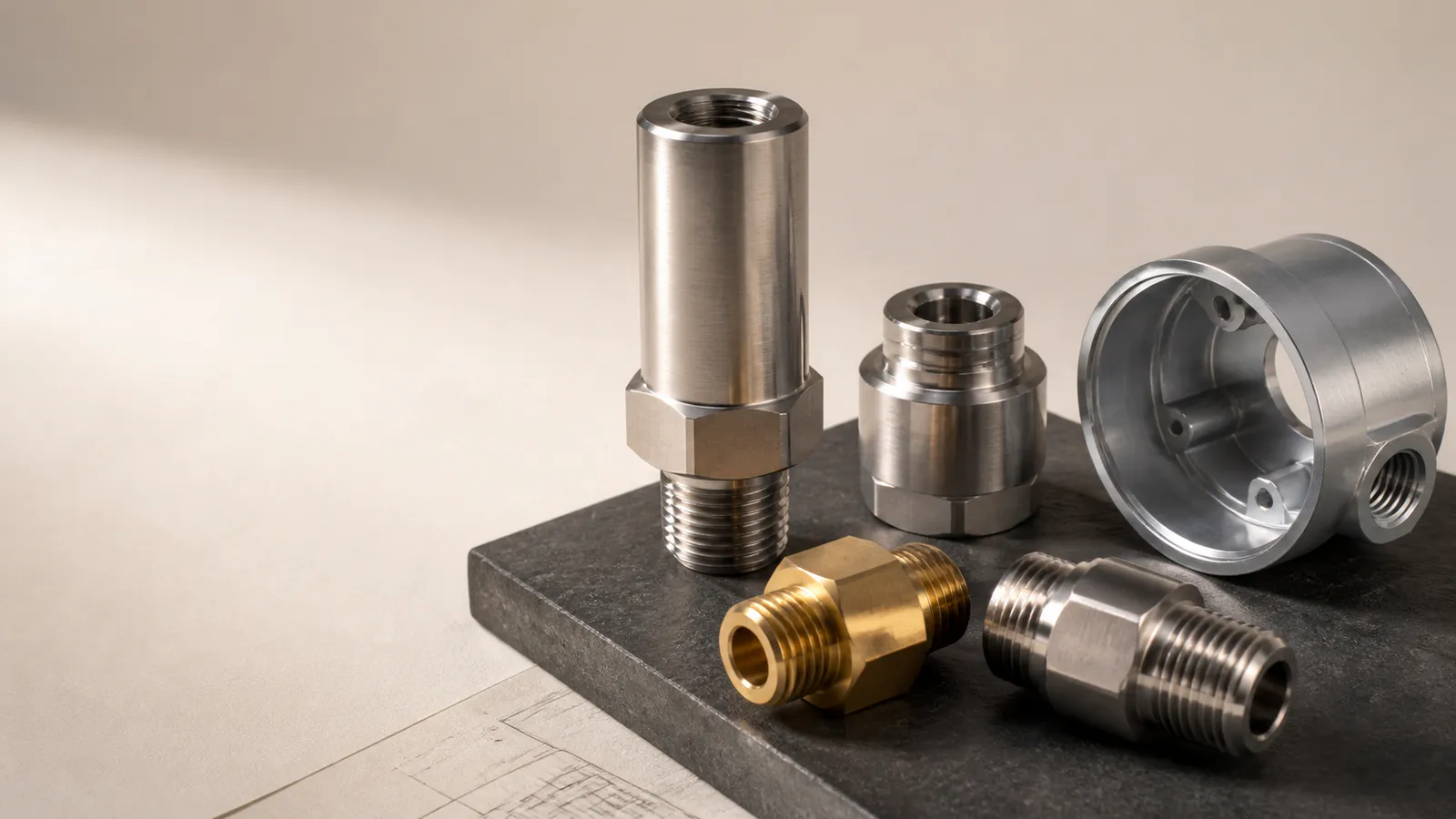

The pressure path starts with the body.
Custom pressure transmitter bodies from your drawing. KEC Tour reviews the process connection, pressure port, sealing face, sensor cavity, wall geometry, material and inspection requirements as one controlled interface before quotation.
Prototype to repeat batch Global B2B supply Drawing upload optional
01Process connectionThread · seat · seal land
02Pressure pathBore · wall · cavity relationship
PRESSURE PATHPorts, bores and wall integrity
SEALING INTERFACESeats, faces and O-ring geometry
INSPECTION PLANEvidence matched to critical features
SUPPLY MODELFactory-direct, worldwide projects
BODY & PROCESS CONNECTION FAMILIES
Specify the interface—not only the pressure range.
Pressure range alone does not define the machined body. The drawing must control the process connection, sealing method, wetted surfaces, pressure path and mating geometry.
0102Flush-face bodies
Machined interfaces where the process-facing seat, diaphragm support and cleanability drive the geometry.
- Flush face
- Seal land
- Surface condition
03Threaded process connections
Custom NPT, BSP, metric or drawing-defined connections reviewed with the mating seal and pressure path.
- Thread form
- Sealing method
- Wetted material
ENGINEERING REVIEW LOGIC
Five decisions before metal is released.
- 01Define the process connectionThread form, flange, hygienic face or custom mating geometry.
- 02Identify wetted and non-wetted zonesMaterial and finish follow actual exposure, not a generic part name.
- 03Control the pressure pathBores, transitions, wall sections and stress-sensitive geometry are drawing-defined.
- 04Protect sealing and assembly interfacesSeat, groove, shoulder, flatness and concentricity are reviewed together.
- 05Agree inspection evidenceMethod, sampling and report level are confirmed before production.

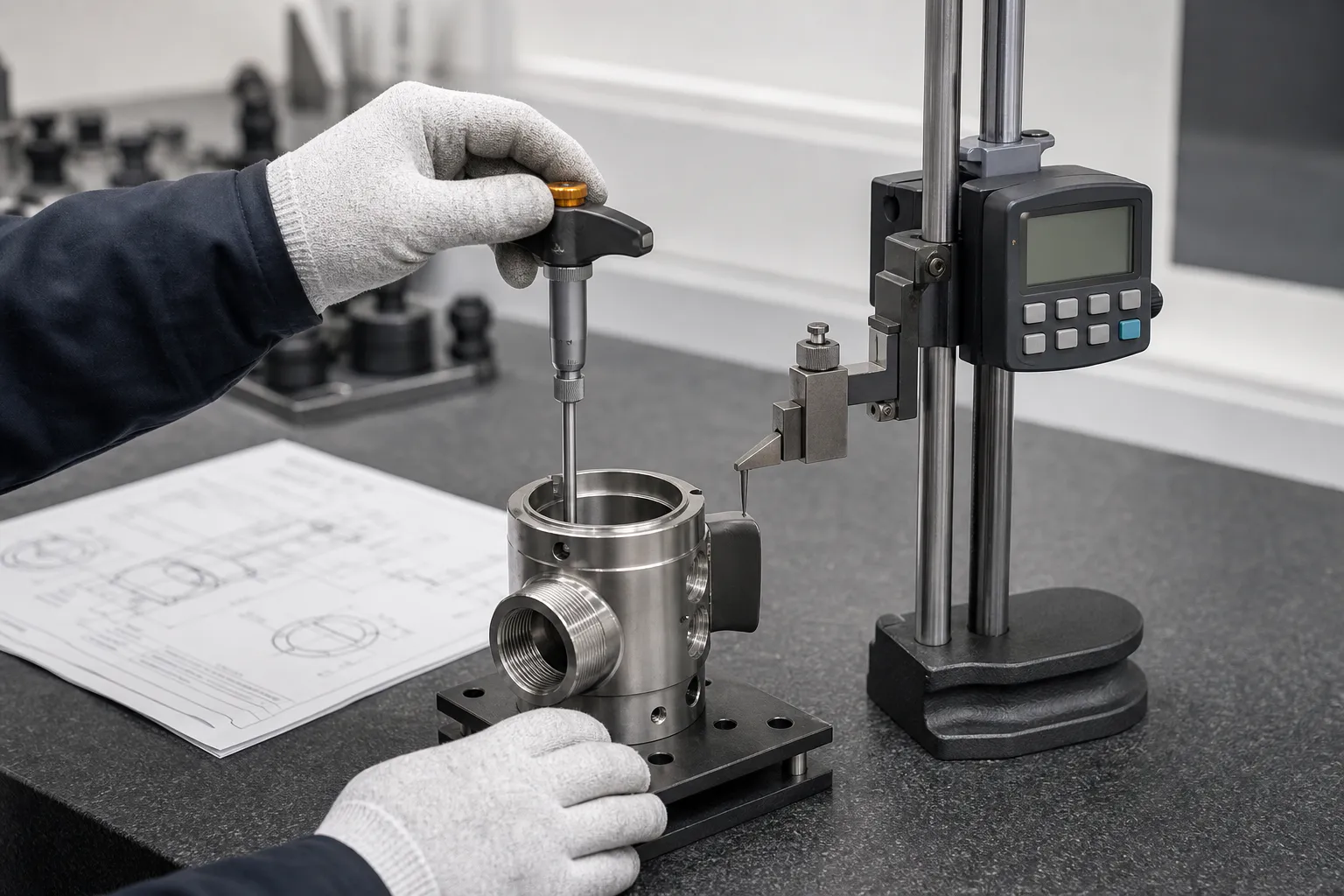

Feature-led inspectionMeasurement method follows access, tolerance and functional risk.
PRESSURE BODY FACTORY PROOF
REAL WORKSHOP · CONTROLLED SEQUENCE
See the manufacturing environment behind the RFQ.
A concise factory view connecting machining capacity, process control, dimensional inspection and finished-part evidence—without claiming complete transmitter assembly or calibration.
Real factory footage Machining context Inspection evidence
Discuss your pressure body MATERIAL & EXPOSURE MATCH
Separate wetted from non-wetted requirements.
Final material, condition, certification, cleaning and finish remain controlled by the released drawing and quotation.
WETTED / CORROSIVE316L stainless steelProcess connections, bodies and corrosion-exposed interfacesGENERAL INSTRUMENTATION304 stainless steelNon-wetted housings and environmental protectionSTRENGTH / HARDNESS17-4PH stainlessDrawing-defined high-strength threaded and structural bodiesADAPTER HARDWAREBrass & aluminumApplication-specific fittings, enclosures and interface components
VERIFIABLE TRUST SIGNALS
Documents are useful only when their scope is clear.
Certification and assessment records relate to the manufacturing network supporting KEC Tour projects. Verify the legal entity, address, covered process and current validity against the document supplied for the order.
Review company informationIATF 16949
Manufacturing-network certificate preview; applicability remains project-specific.
ISO 14001
Environmental-management evidence available for buyer verification.
IECQ QC 080000
Process-management document preview with scope checked per project.
D&B supplier report
Dongguan Xugao Precision Metal Manufacture Co., Ltd. · D-U-N-S 54-325-6989 · report dated 2 June 2020.
Open assessment evidenceSUPPLY SCOPE
Machined metal hardware—not a complete pressure instrument.
Customer-designed metal bodies, pressure ports, process connections, adapters, sleeves, housings, end caps and other drawing-defined structural hardware.
Sensing cells, electronics, wiring, filling, calibration, pressure-system certification, complete instrument assembly and complete product R&D.
DIRECT ANSWERS
Questions buyers ask before an RFQ.
What should I send for a pressure transmitter body quotation?
Start with a STEP or STP model and a controlled PDF drawing when available. Identify the pressure port or process connection, wetted material, sealing concept, critical bores, surface requirements, quantity, inspection evidence and target delivery.
Which materials can be reviewed?
Common drawing-defined reviews include 316L and 304 stainless steel, 17-4PH stainless, aluminum alloys and brass. Final grade, heat treatment, certification, corrosion exposure and finish are confirmed against the released drawing and quotation.
Does KEC Tour manufacture complete pressure transmitters?
This page covers customer-designed machined metal bodies, housings and related interfaces. Electronics, sensing cells, filling, calibration, complete pressure assemblies and performance certification are outside the standard scope unless separately verified and agreed.
How are pressure ports and sealing faces inspected?
The method follows the released geometry and functional risk. It may include thread gauges, bore measurement, CMM inspection, surface-condition checks, flatness or concentricity verification and agreed documentation.
Can you support prototypes and repeat production?
Yes. Projects may be reviewed for prototypes, validation lots, bridge quantities and repeat batches. Revision control, fixtures, process checks and documentation scale with the approved production stage.
READY TO REVIEW THE PRESSURE PATH?
Send the body drawing. We will identify the missing manufacturing inputs.
