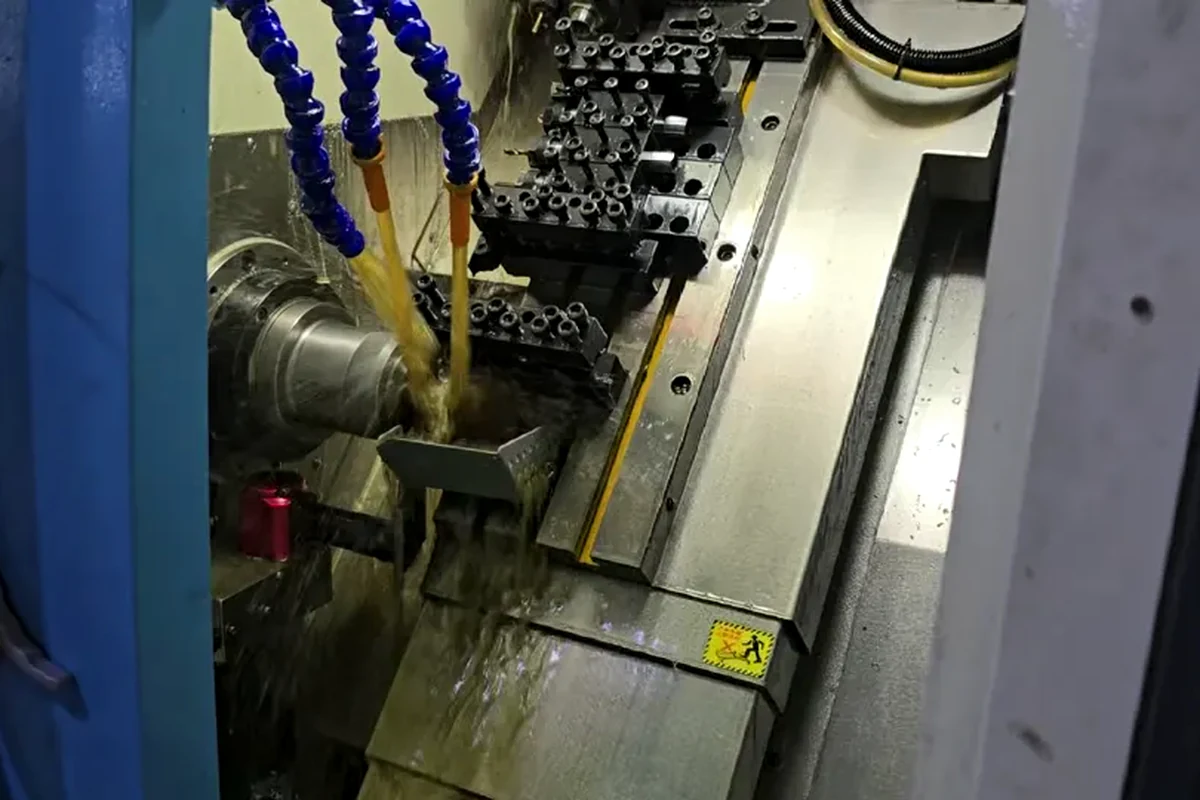

Thin-Wall Sleeves and Bushings: Distortion, Burrs and Inspection

This is a failure-prevention guide for parts that pass in the chuck but move after release. The useful outcome is a controlled specification that lets engineering, purchasing, manufacturing and quality make the same decision.

Decision table

Design for stiffness where possible

Increase local wall, add a temporary machining ring or move holes away from the thinnest zone when function allows. If geometry cannot change, budget for lower-force workholding and staged cutting.

Buyer action: Add the related requirement, acceptance method and responsible party to the RFQ or drawing clarification log. Do not leave it as an unwritten assumption.

Plan roughing and finishing

Balanced stock removal, cooling and a controlled rest period can reduce movement before the final pass. The route should define when thin features and interrupted cuts are made.

Buyer action: Add the related requirement, acceptance method and responsible party to the RFQ or drawing clarification log. Do not leave it as an unwritten assumption.

Inspect without creating the defect

High contact force or unsupported measurement can ovalize a sleeve. Agree the support, orientation, temperature and measurement device, and correlate it with the functional mating part.

Buyer action: Add the related requirement, acceptance method and responsible party to the RFQ or drawing clarification log. Do not leave it as an unwritten assumption.

Control edges and hidden intersections

State which edges require a break and which must remain sharp for seating. For cross holes, require removal of loose burrs inside the bore and define an inspection method.

Buyer action: Add the related requirement, acceptance method and responsible party to the RFQ or drawing clarification log. Do not leave it as an unwritten assumption.

How to compare supplier responses

Do not score a supplier by how quickly it returns a price. Score the response by how many technical and commercial assumptions it closes. A strong quotation identifies the released inputs, exclusions, substitutions, one-time charges, recurring price and first-shipment evidence.

Use the same comparison sheet for every bidder: price basis, quantity, material, route, finish, inspection, documentation, packaging, delivery term, lead-time start and quotation validity. Resolve scope differences before negotiating price.

Free-state requirement: ask for objective evidence

The quotation should state how and when geometry is measured. If it does not, ask how the supplier will prevent a clamped result hides springback, which document records acceptance, and what happens when the result is outside the requirement. A useful answer names the process owner, inspection or review method, frequency and record—not only a quality promise.

Wall map: ask for objective evidence

The quotation should state minimum wall and interrupted features. If it does not, ask how the supplier will prevent local stiffness changes around holes and slots, which document records acceptance, and what happens when the result is outside the requirement. A useful answer names the process owner, inspection or review method, frequency and record—not only a quality promise.

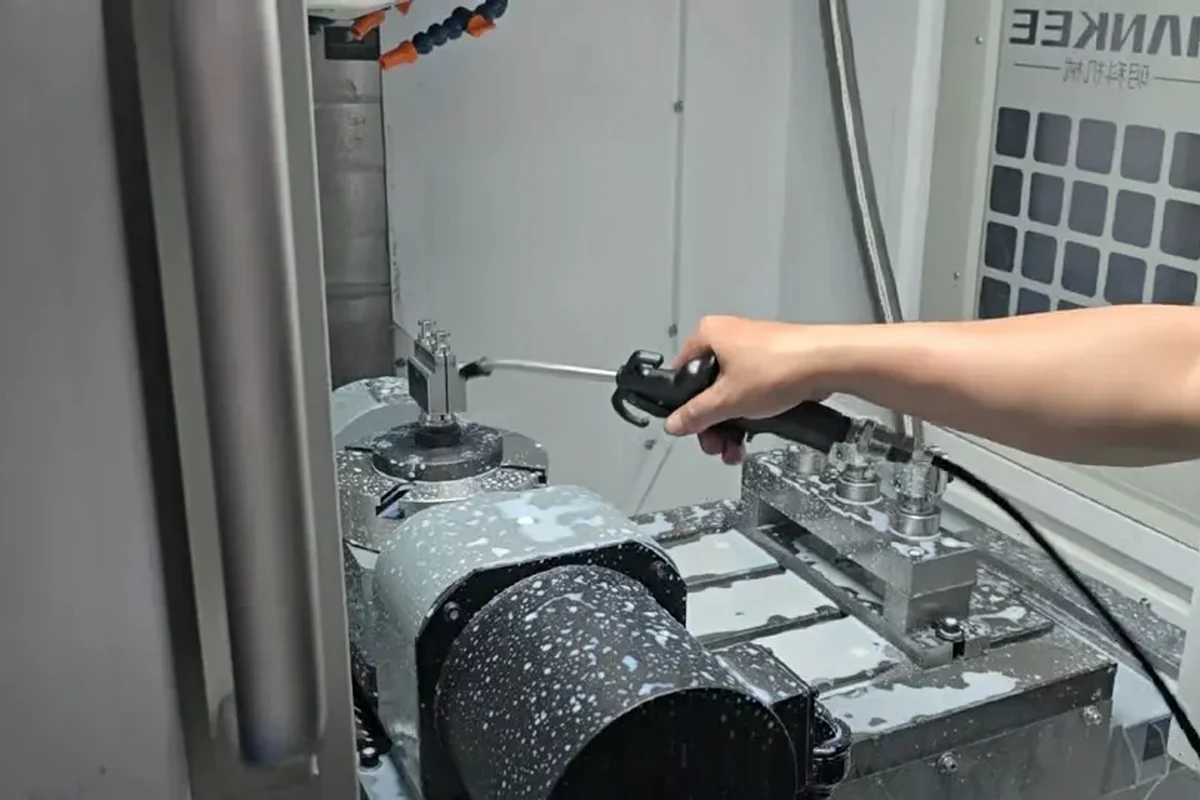

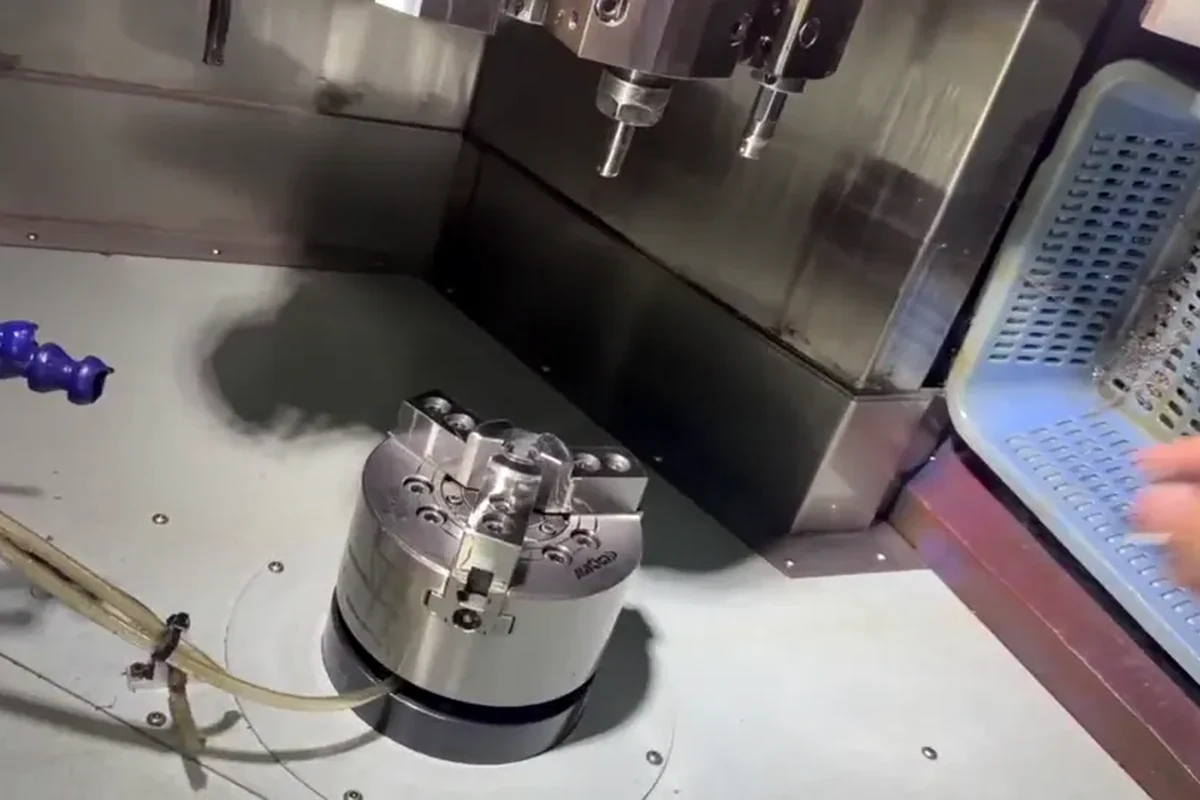

Holding: ask for objective evidence

The quotation should state chuck, mandrel, soft jaw or sacrificial stock. If it does not, ask how the supplier will prevent fixture pressure distorts the bore, which document records acceptance, and what happens when the result is outside the requirement. A useful answer names the process owner, inspection or review method, frequency and record—not only a quality promise.

Deburring: ask for objective evidence

The quotation should state edge location and maximum break. If it does not, ask how the supplier will prevent aggressive finishing changes the thin edge, which document records acceptance, and what happens when the result is outside the requirement. A useful answer names the process owner, inspection or review method, frequency and record—not only a quality promise.

RFQ checklist

• Controlled part number, drawing revision, units and 3D model
• Exact material grade/condition and certificate requirement
• Critical dimensions, threads, sealing faces and datums
• Surface treatment and post-finish acceptance
• Prototype/batch quantities, destination and delivery term
• Inspection, test, traceability and reporting
• Packaging and repeat-order expectations

Practical buyer scenario

A buyer receives two quotes for the same nominal part. One is cheaper but lists only material and unit price. The second states the drawing revision, manufacturing route, treatment, critical inspection, sample approval and delivery basis. Normalize scope, close technical questions and compare cost per accepted part—not a headline price built on missing assumptions.

Frequently asked questions

Sources and standards references

• KEC Tour — custom metal parts and non-standard hardware
• ISO 286-1 — ISO code system for tolerances on linear sizes
• ASME Y14.5 — Dimensioning and Tolerancing
• ISO 14253-1 — Decision rules for verifying conformity

Engineering note: confirm the standard edition, customer specification and regulatory obligations for the actual part. KEC Tour provides manufacturing and DFM input; the buyer retains product-design and application-validation responsibility.
